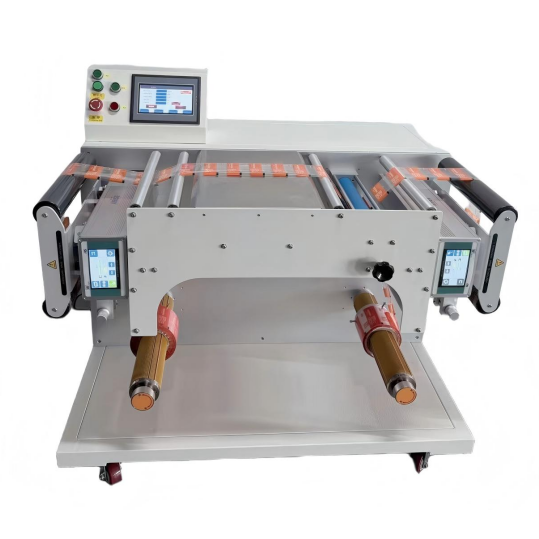

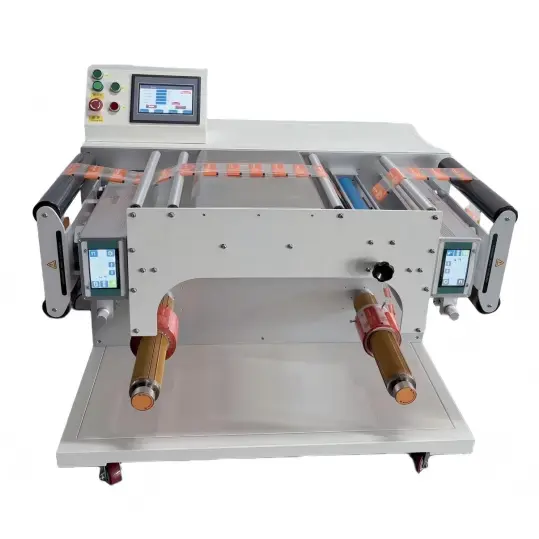

300mm Forward Reverse High-Speed Rewinding Machine

Wide application range: can meet the rewinding of roll materials (label strips) with liner width of 50–300 mm.
Sturdy and durable: the main board uses national standard 6061 aluminum plate, the chassis uses a painted finish, and key components are rigidly connected to ensure the rigidity and stability of the connection parts.
High stability: advanced electrical control system composed of PLC + touch screen + high-precision deviation correction system.
Simple operation: plug in and use; switching between different products becomes simple and time-saving.
Touch screen operation interface, Chinese and English annotations, and complete fault prompt function; various parameter adjustments are simple and quick, and operation is convenient.
Powerful functions: production counting, meter counting, power saving function, production quantity setting prompt function, and parameter setting protection function, convenient for production management.
Optional functions and components: ① thermal transfer coding; ② inkjet coding function; ③ laser marking; other functions (customized according to customer requirements).

Label rewinding speed: 0–100 m/min (adjustable according to actual conditions)
Roll material size: inner hole 76 mm, outer diameter 300 mm
Applicable roll size: width 50 mm–300 mm
Overall machine dimensions: 1020 mm × 850 mm × 1200 mm (L × W × H)
Applicable power supply: 220V 50/60Hz
Overall machine weight: 170 kg
Total power: 1200W

Main Mechanism Configuration

Note: The configuration may be adjusted reasonably based on the actual delivery time of the materials, and can also be revised according to the customer's requirements in the same configuration.
