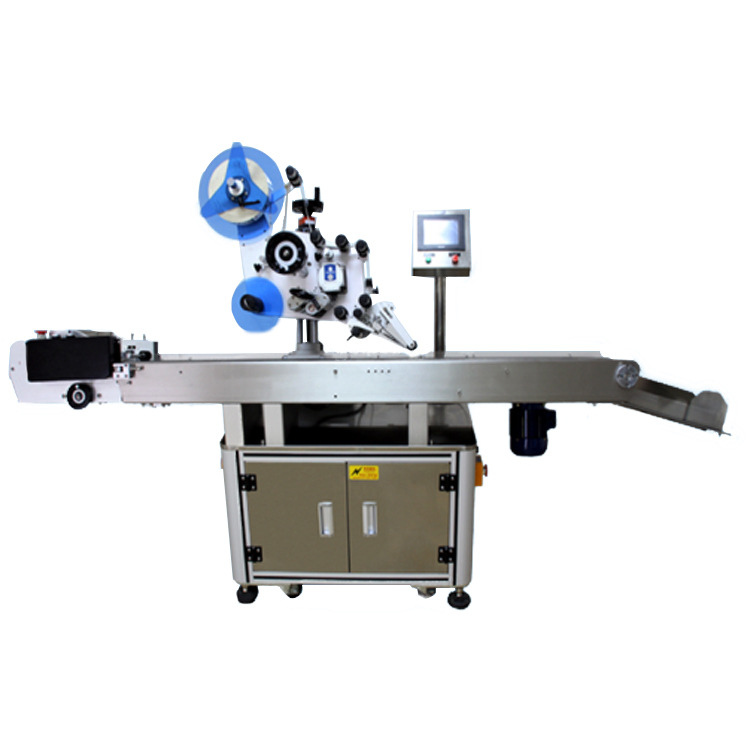

Automatic carton paging labeling machine
  • Automatic carton paging labeling machine - 0 Automatic carton paging labeling machine - 0
  • Automatic carton paging labeling machine - 1 Automatic carton paging labeling machine - 1
  • Automatic carton paging labeling machine - 2 Automatic carton paging labeling machine - 2

Automatic carton paging labeling machine

You can rest assured to buy Chunlei Automatic carton paging labeling machine from our factory. With high-quality products, good reputation and high-quality service, the products sell well in Europe, America, Southeast Asia, the Middle East and other markets. We sincerely cooperate with customers and merchants for win-win, common development and common progress.It is specially used for labeling all kinds of cards, lotteries, bags, plastics, fabrics, papers, and films; it has high accuracy and no bubbles in the film

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you Chunlei Automatic carton paging labeling machine. Dongguan Chunlei Intelligent Equipment Co., Ltd. regards quality as the life of the enterprise, strictly manages quality and actively participates in market competition, with remarkable performance, receiving support from domestic customers, while actively exploring the international market, exporting products to the Philippines, Pakistan, Australia, New Zealand, Venezuela, India, Japan, the Netherlands, the United States and other countries, the quality of products has been widely praised and has left a good impression on customers.

Introduction of automatic paging labeling machine

1. It is specially used for labeling all kinds of cards, lotteries, bags, plastics, fabrics, papers, and films; it has high accuracy and no bubbles in the film;

2. With product automatic identification function, different labeling heads can be used automatically according to different products.

3. It can be used with various packaging lines.

4. It can be equipped with a code printer or a printer to the labeling head, which can print the production date, batch number and barcode printing on the label.

5. It can be used with a variety of packaging lines.


Features and applications of automatic paging labeling machine:

1. The sub-card is stable, and the advanced sorting-reverse wheel technology is used to sub-card,

2. The sub-card labeling speed is high, and the stable speed can reach more than 200 pieces/min;

3. It has a wide range of applications, which can meet the labeling of various cards and paper items.

4. The labeling accuracy is stable, and the topping roller is used to press the workpiece, and the conveying is stable to ensure the labeling accuracy;

5. Intelligent control, with the functions of nothing but no labeling, automatic correction without label and automatic label detection

6. High stability, support the equipment to operate 7×24 hours;

7. Touch screen operation interface, convenient operation; powerful function, with parameter setting protection function

8. Optional functions and components:

(1) Hot coding/printing function;

(2) Add labeling device;

(3) Automatic material collection function (combined with product consideration);

(4) Automatic feeding function (combined with product consideration);

Other functions (customized as required).


Technical parameters of automatic paging labeling machine:

The following are the technical parameters of the standard model, other special requirements and functions can be customized.


Applicable label length:

20mm~150mm

Applicable label width (bottom paper width):

6mm~150mm

Applicable product length:

40mm~300mm

Applicable product width:

40mm~200mm

Applicable product height:

0.22mm

Applicable label roll outer diameter (mm):

φ280mm

Applicable label roll inner diameter (mm):

φ76mm

Labeling accuracy (mm):

±1mm

Labeling speed (pcs/min):

30~120pcs/min

Weight (kg):

About180kg

Frequency (HZ):

50HZ

  Voltage (V):

220V

Power (W):

1000W(Traction step

Equipment dimensions (mm) (length×width×height):

About2000mm×720mm×1400mm


Application Case:


Application scope of automatic paging labeling machine

1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

2. Applicable products: boxes, bags, paper cards, etc.

3. Application industry: widely used in gifts, printing, food, clothing, home textiles, medicine and other industries.


Manufacturer strength

Dongguan Chunlei Intelligent Equipment Co., Ltd. (WWW.CHUNLEIAUTO.CN) is a modern high-tech enterprise specializing in the manufacture of labeling machine equipment. Its products include automatic labeling machines, automatic labeling machines, labeling machines, and self-adhesive stickers. Automatic labeling equipment such as labeling machine, card labeling machine, flat labeling machine, round bottle labeling machine, side labeling machine, flat labeling machine, round bottle labeling machine, semi-automatic labeling machine, real-time printing labeling machine, etc. , And we have our own R&D team and advanced design concepts. The successful research and development of the mask sponge sticking machine has been put into the market in March 2020, and we have received good market feedback.

We have advanced technology concepts, insist on technological innovation, and use technology to serve our customers, and are committed to solving customer production automation problems.


FAQ:

Q1: Is it difficult to install the machine?

A:The workshop should prepare complete facilities, such as power and air compressors. For the first installation, we provide instructional video guidance. If there are other problems, we can also provide video guidance to troubleshoot.

Q2: What is the delivery time of the machine?

A: The standard machine is generally in stock, and can be shipped within 3 to 5, and we can complete the production within 7 to 15 working days for standard modification or non-standard customization.

Q3: How to get the price?

A: We will usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in a hurry to ask for a price, please send us an email or contact us in other ways so that we can provide you with a quotation.

Q4: How about the quality control of your company?

A: We always attach great importance to quality control to ensure that our customers finally get what they want.

Q5: If I place an order, how will you ship my items?

A: Whether it is by sea, air or express, you can choose the most suitable order for you.
