As the professional manufacture, we would like to provide you Chunlei Automatic eyeliner labeling machine. Dongguan Chunlei Intelligent Equipment Co., Ltd. regards quality as the life of the enterprise, strictly manages quality and actively participates in market competition, with remarkable performance, receiving support from domestic customers, while actively exploring the international market, exporting products to the Philippines, Pakistan, Australia, New Zealand, Venezuela, India, Japan, the Netherlands, the United States and other countries, the quality of products has been widely praised and has left a good impression on customers.

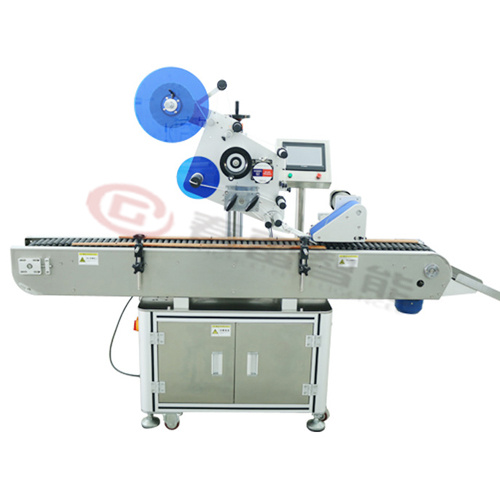

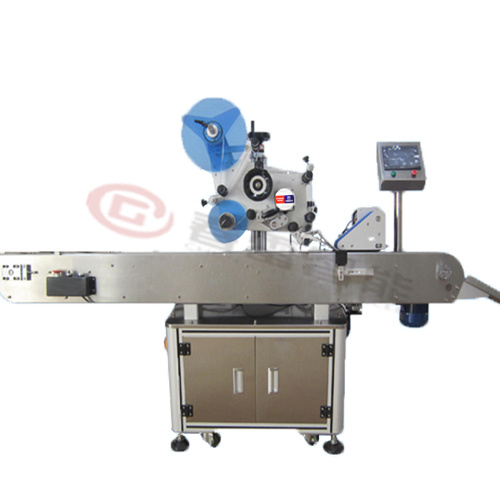

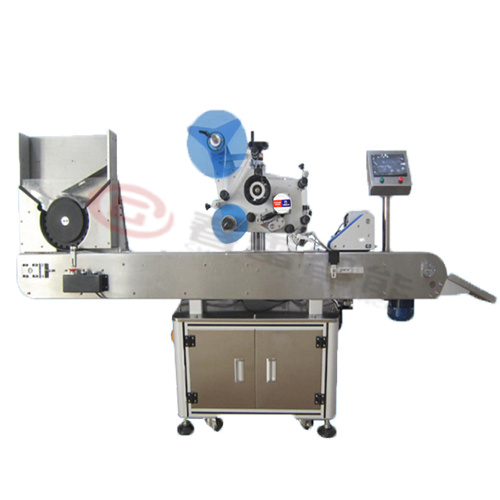

Introduction of Automatic eyeliner labeling machine
1. It is suitable for the labeling of the circumference and half of the circumference of the cylindrical object that is not stable. It adopts the method of horizontal transmission and horizontal labeling to increase stability and improve labeling efficiency.
2. Optional coding machine or inkjet printer to the labeling head and conveyor belt can be used to print the production date, batch number and bar code printing information on the label before or after labeling.
3. This machine is also suitable for assembly line production.
Technical parameters of Automatic eyeliner labeling machine:
The following are the technical parameters of the standard model, other special requirements and functions can be customized.
Applicable label length: |
20mm~100mm |
Applicable label width (bottom paper width): |
20mm~150mm |
Applicable product diameter: |
18mm~25mm |
Applicable product height: |
25mm~100mm |
Applicable label roll outer diameter (mm): |
φ280mm |
Applicable label roll inner diameter (mm): |
φ76mm |
Labeling accuracy (mm): |
±1mm |
Labeling speed (pcs/min): |
50~400pcs/min |
Weight (kg): |
About200kg |
Frequency (HZ): |
50HZ |
Voltage (V): |
220V |
Power (W): |
1200W(Traction step) |
Equipment dimensions (mm) (length×width×height): |
About2000mm×700mm×1500mm |
Features and applications of Automatic eyeliner labeling machine
1. Adopt side horizontal roller conveying mechanism, conveying and labeling at high speed and stability.
2. Adopting standard tape circumvention and deviation correction technology, rolling type labeling, excellent labeling quality, and improved packaging quality;
3. Intelligent control, non-standard automatic correction and automatic label detection to prevent missing labels and label waste;
4. Touch screen operation, simple and quick adjustment of various parameters, convenient operation;
5. With production counting function, parameter setting protection function, convenient production management;
6. Optional functions and components:
(1) Hot coding/printing function;
(2) Add labeling device;
(3) Other functions (customized according to customer requirements).
Application Case:
Application scope of automatic horizontal labeling machine:
1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
2. Applicable products: bottles, tubes, pens, etc.
3. Application industry: widely used in catering, chemical, daily chemical, food, tobacco and alcohol, medicine, gifts, handicrafts, hardware and other industries.
Manufacturer strength
Dongguan Chunlei Intelligent Equipment Co., Ltd. (WWW.CHUNLEIAUTO.CN) is a modern high-tech enterprise specializing in the manufacture of labeling machine equipment. Its products include automatic labeling machines, automatic labeling machines, labeling machines, and self-adhesive stickers. Automatic labeling equipment such as labeling machine, card labeling machine, flat labeling machine, round bottle labeling machine, side labeling machine, flat labeling machine, round bottle labeling machine, semi-automatic labeling machine, real-time printing labeling machine, etc. , And we have our own R&D team and advanced design concepts. The successful research and development of the mask sponge sticking machine has been put into the market in March 2020, and we have received good market feedback.
We have advanced technology concepts, insist on technological innovation, and use technology to serve our customers, and are committed to solving customer production automation problems.
FAQ:
Q1: Is it difficult to install the machine?
A:The workshop should prepare complete facilities, such as power and air compressors. For the first installation, we provide instructional video guidance. If there are other problems, we can also provide video guidance to troubleshoot.
Q2: What is the delivery time of the machine?
A: The standard machine is generally in stock, and can be shipped within 3 to 5, and we can complete the production within 7 to 15 working days for standard modification or non-standard customization.
Q3: How to get the price?
A: We will usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in a hurry to ask for a price, please send us an email or contact us in other ways so that we can provide you with a quotation.
Q4: How about the quality control of your company?
A: We always attach great importance to quality control to ensure that our customers finally get what they want.
Q5: If I place an order, how will you ship my items?
A: Whether it is by sea, air or express, you can choose the most suitable order for you.
