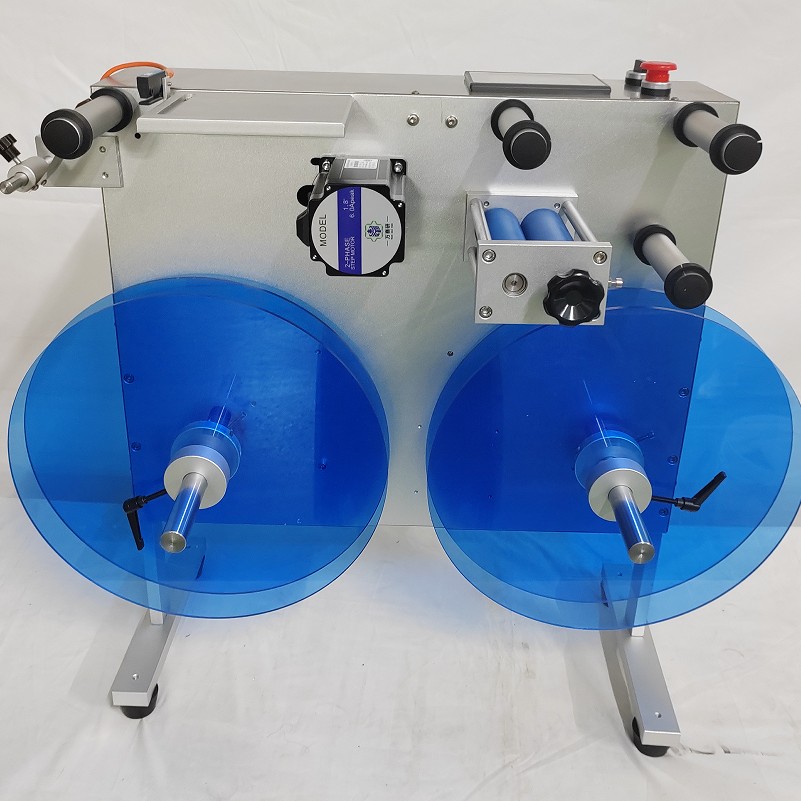

Automatic Rewinding Machine

1. This label rewinding machine has jog label rewinding and continuous label rewinding functions, which can be manually switched.
2. This equipment must be operated according to the instructions in the manual, or under the guidance of our technician.
It can be equipped with a ribbon coder and an inkjet printer.

Send Inquiry

Product Description

Applicable scope: adhesive labels, 3M labels, electronic labels, barcode labels, film, and other roll products.

Technical Parameters

Rewinding speed: 0–30 m/min (adjustable according to actual conditions)
Roll material size: inner hole 76 mm, outer diameter 300 mm
Applicable label size: width 10 mm–150 mm
Overall machine dimensions: 700 mm × 420 mm × 600 mm (L × W × H)
Applicable power supply: 200V 50/60Hz
Overall machine weight: 35 kg
Total power: 450W

Configuration Details and Parameters

Category	Name	Quantity	Material/Model	Name	Quantity	Material/Model
Main Mechanism Configuration	Unwinding Mechanism	1 set	Stainless steel, acrylic, aluminum alloy	Guide Label Roller	4 sets	Aluminum alloy
	Label Pressing Mechanism	1 set	Aluminum alloy, manganese sheet	Rewinding Mechanism	1 set	Stainless steel, acrylic, aluminum alloy
	Traction Mechanism	1 set	Aluminum alloy, steel, rubber-covered roller	Electrical Box	1 set	Stainless steel
Main Electrical Configuration	PLC	1 set	YUNCON	Traction Motor	1 set	Stepper motor
	Switching Power Supply	1 set	Mean Well	Traction Motor Driver	1 set	Stepper driver
	Toroidal Transformer	1 set	Domestic	Touch Screen	1 set	YUNCON
Rewinding Speed		0–30 m/min
Applicable Roll Width		Label liner width within 150 mm
Applicable Roll Size		Reel diameter 300 mm, core inner hole 76 mm
Optional Items		Laser machine, inkjet printer, and ribbon coder all have signal sources available for connection.
Voltage		220V
Machine Dimensions		L700 mm × W420 mm × H600 mm

Note: The configuration may be reasonably adjusted under equivalent configuration according to actual material and delivery conditions, and the configuration can be revised according to customer needs.
