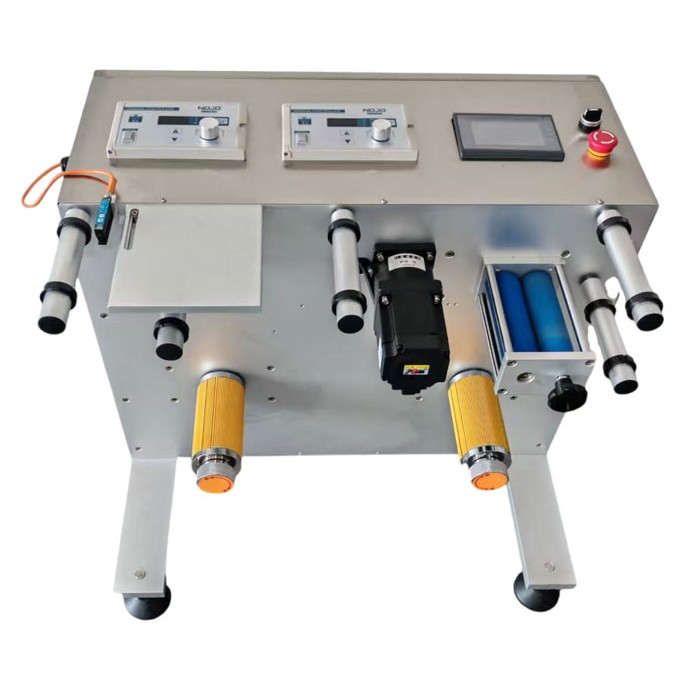

Customized Rewinding Machine

Wide application range: can meet the rewinding of roll materials (label strips) with liner width of 20–200 mm.
Sturdy and durable: the main board uses national standard 6061 aluminum plate, the chassis uses stainless steel, and key components are rigidly connected to ensure the rigidity and stability of the connection parts.
High stability: advanced electrical control system composed of PLC + touch screen + high-precision label detection sensor.
Simple adjustment and adjustable design freedom; switching between different products becomes simple and time-saving.
Touch screen operation interface, Chinese and English annotations, and complete fault prompt function; various parameter adjustments are simple and quick, and operation is convenient.
Powerful functions: production counting function, power saving function, production quantity setting prompt function, and parameter setting protection function, convenient for production management.
Optional functions and components: ① hot stamping coding / inkjet coding function; ② laser marking; ③ add other functions (customized according to customer requirements).

Label rewinding speed: 0–50 m/min (adjustable according to actual conditions)
Roll material size: inner hole 76 mm, outer diameter 300 mm
Applicable label size: width 10 mm–200 mm
Overall machine dimensions: 700 mm × 500 mm × 600 mm (L × W × H)
Applicable power supply: 200V 50/60Hz
Overall machine weight: 50 kg
Total power: 450W

Note: The configuration may be reasonably adjusted under equivalent configuration according to actual material and delivery conditions, and the configuration can be revised according to customer needs.
