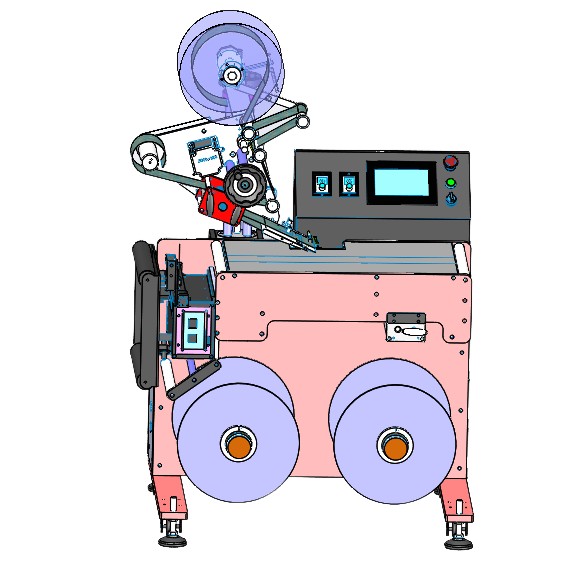

Roll-to-Roll Labeling Machine
Suitable for labeling or covering bottom labels on circular coil materials, such as electronic trademarks (with bottom labels as electronic components and front labels as protective films, etc.). Widely used for labeling coils in industries such as electronics, medical, and culture-education.
Send Inquiry
Product Description
◆ Wide application range: Can meet flat labeling of roll films (label tapes) with a bottom film width of 20–300mm. Replacing the label covering mechanism can adapt to labeling on uneven surfaces.
◆ High labeling accuracy: Driven by a servo motor + planetary gearbox for precise label feeding; controlled by a deviation correction system to prevent left-right offset during label traction; eccentric wheel technology applied to the traction mechanism to avoid label slipping and ensure accurate label dispensing.
◆ Sturdy and durable: Adopts a three-rod adjustment mechanism, leveraging the stability of the triangle structure for overall firmness and durability.
◆ High stability: Composed of a PLC + touchscreen + Advanced electronic control system composed of label detection electric eye.
◆ Simple adjustment: Designed with adjustable freedom, enabling simple and time-saving conversion between different products.
◆ Intelligent control: Automatically tracks via photoelectric sensors, with functions such as no-object no-labeling, label-free automatic calibration, and label automatic detection to prevent missing labels and waste.
◆ Touchscreen operation interface: Features Chinese-English annotations and comprehensive fault prompt functions, allowing simple and quick adjustment of various parameters for convenient operation.
◆ Powerful functions: Equipped with production counting, power-saving, production count setting prompt, and parameter setting protection functions for convenient production management.
◆ Optional functions and components: ① Thermal coding/inkjet printing function; ② Additional labeling devices; ③ Other functions (customized according to customer requirements).
◆ High labeling accuracy: Driven by a servo motor + planetary gearbox for precise label feeding; controlled by a deviation correction system to prevent left-right offset during label traction; eccentric wheel technology applied to the traction mechanism to avoid label slipping and ensure accurate label dispensing.
◆ Sturdy and durable: Adopts a three-rod adjustment mechanism, leveraging the stability of the triangle structure for overall firmness and durability.
◆ High stability: Composed of a PLC + touchscreen + Advanced electronic control system composed of label detection electric eye.
◆ Simple adjustment: Designed with adjustable freedom, enabling simple and time-saving conversion between different products.
◆ Intelligent control: Automatically tracks via photoelectric sensors, with functions such as no-object no-labeling, label-free automatic calibration, and label automatic detection to prevent missing labels and waste.
◆ Touchscreen operation interface: Features Chinese-English annotations and comprehensive fault prompt functions, allowing simple and quick adjustment of various parameters for convenient operation.
◆ Powerful functions: Equipped with production counting, power-saving, production count setting prompt, and parameter setting protection functions for convenient production management.
◆ Optional functions and components: ① Thermal coding/inkjet printing function; ② Additional labeling devices; ③ Other functions (customized according to customer requirements).
Configuration Details
Main Mechanism Configuration
| Mechanism Name | Quantity | Main Material Used | Mechanism Name | Quantity | Main Material Used |
| Label Unwinding Mechanism | 1 set | Stainless steel, acrylic, aluminum alloy | Label Guiding Mechanism | 1 set | Aluminum alloy |
| Label Pressing Mechanism | 1 set | Aluminum alloy, manganese sheet | Label Peeling Mechanism | 1 set | Stainless steel, aluminum alloy |
| Traction Mechanism | 2 sets | Aluminum alloy, steel, rubber-covered roller | Rewinding Mechanism | 1 set | Stainless steel, POM (acetal), aluminum alloy |
| Electrical Box | 1 set | Stainless steel sheet metal | Adjusting Seat | 1 set | Stainless steel, aluminum alloy |
| Label Applying Mechanism | 1 set | Aluminum alloy, sponge / brush | Labeling Platform | 1 set | Stainless steel |
| Deviation Correction Mechanism | 1 set | Aluminum alloy | Liner Unwinding Mechanism | 1 set | Manual expansion shaft |
|
|
|
|
Liner Rewinding Mechanism | 1 set | Manual expansion shaft |
Main Electrical Configuration
| Electrical Name | Quantity | Model/Specification | Electrical Name | Quantity | Model/Specification |
| Label Detection Sensor | 2 sets | SICK | Traction Motor | 1 set | Servo motor + planetary reducer |
| PLC | 1 set | colmay | Traction Motor Driver | 1 set | Servo driver |
| Touch Screen | 1 set | colmay | Label Applying Motor | 1 set | WANYAN |
| Rewinding Motor | 1 set | Servo motor + planetary reducer | Rewinding Motor Driver | 1 set | Servo driver |
| Tension Control | 2 sets | Domestic | Power Supply | 1 set | Mean Well |
Technical Parameters
Labeling speed: 0–200 pieces/min (related to product and label size)
Labeling accuracy: ±0.5mm (excluding product and label errors)
Suitable product size: L30–300mm, W30–130mm
Suitable label range: Width 20–150mm, Length 20–200mm
Voltage/power/frequency: 220V/50HZ
Dimensions (L×W×H): 1200mm×800mm×1450mm (subject to actual size)
Weight (approx.): 120KG
Labeling accuracy: ±0.5mm (excluding product and label errors)
Suitable product size: L30–300mm, W30–130mm
Suitable label range: Width 20–150mm, Length 20–200mm
Voltage/power/frequency: 220V/50HZ
Dimensions (L×W×H): 1200mm×800mm×1450mm (subject to actual size)
Weight (approx.): 120KG
Note: Configurations may be reasonably adjusted under the same specification based on actual material delivery schedules and can be revised according to customer needs.
