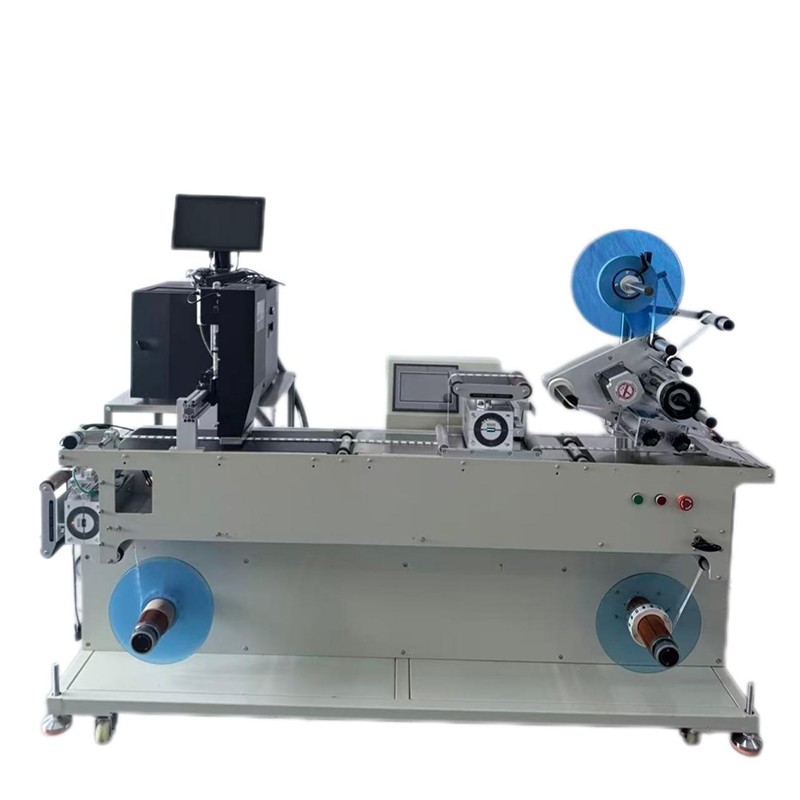

Roll to Roll UV Inkjet Printing and Labeling Machine

◆ Wide application range: Can meet flat labeling of roll films (label tapes) with a bottom film width of 20–300mm. Replacing the label covering mechanism can adapt to labeling on uneven surfaces.
◆ High labeling accuracy: Driven by a servo motor + planetary gearbox for precise label feeding; controlled by a deviation correction system to prevent left-right offset during label traction; eccentric wheel technology applied to the traction mechanism to avoid label slipping and ensure accurate label dispensing.
◆ Sturdy and durable: Adopts a three-rod adjustment mechanism, leveraging the stability of the triangle structure for overall firmness and durability.
◆ High stability: Composed of a PLC + touchscreen + German Sick label detection photoelectric sensor for an advanced electrical control system.
◆ Simple adjustment: Designed with adjustable freedom, enabling simple and time-saving conversion between different products.
◆ Intelligent control: Automatically tracks via photoelectric sensors, with functions such as no-object no-labeling, label-free automatic calibration, and label automatic detection to prevent missing labels and waste.
◆ Touchscreen operation interface: Features Chinese-English annotations and comprehensive fault prompt functions, allowing simple and quick adjustment of various parameters for convenient operation.
◆ Powerful functions: Equipped with production counting, power-saving, production count setting prompt, and parameter setting protection functions for convenient production management.
◆ Optional functions and components: ① Thermal coding/inkjet printing function; ② Additional labeling devices; ③ Other functions (customized according to customer requirements).

Main Mechanism Configuration

Labeling speed: 0–200 pieces/min (related to product and label size)
Labeling accuracy: ±0.5mm (excluding product and label errors)
Suitable product size: L30–300mm, W30–150mm
Suitable label range: Width 20–130mm, Length 20–200mm
Voltage/power/frequency: 220V/50HZ
Dimensions (L×W×H): 1800mm×600mm×1500mm (subject to actual size)
Weight (approx.): 160KG

Note: Configurations may be reasonably adjusted under the same specification based on actual material delivery schedules and can be revised according to customer needs.
