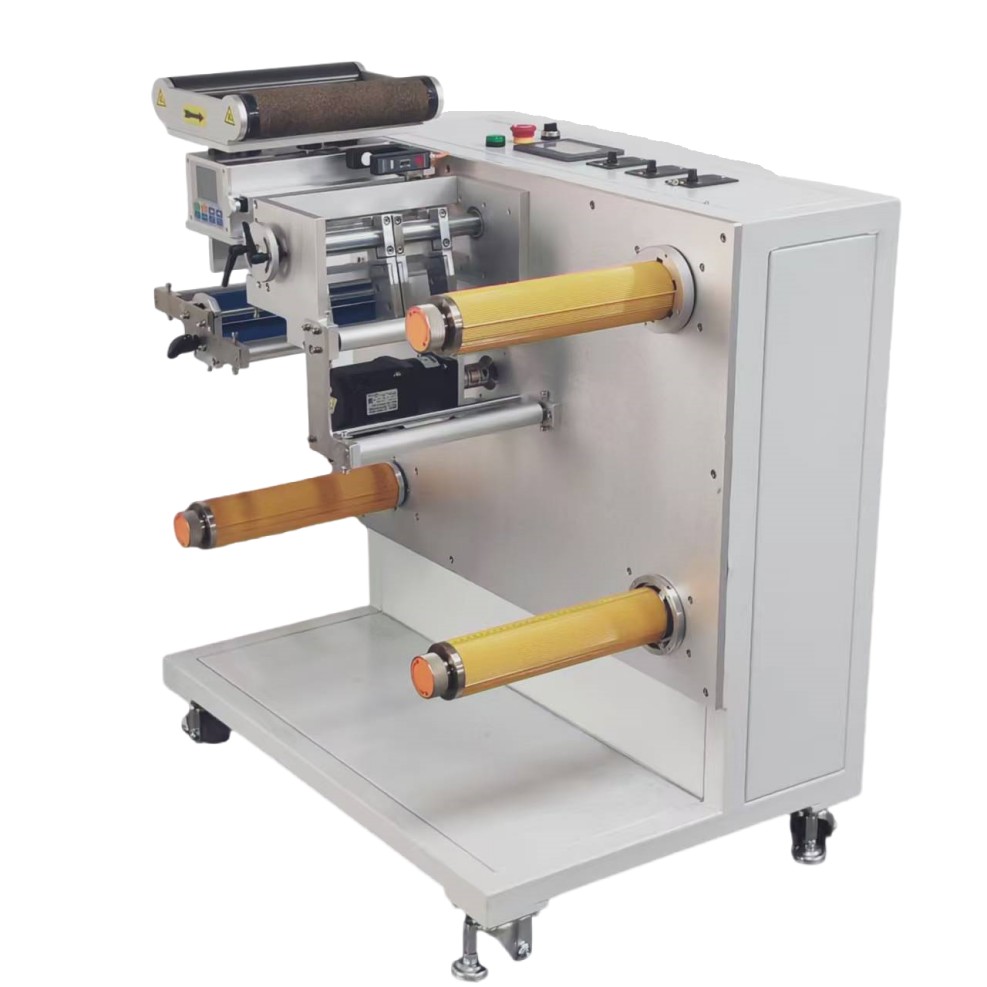

Small Slitting Machine

Wide application range: can meet the rewinding and slitting of roll materials (label strips) with web width of 10–300 mm.
Sturdy and durable: the main board uses national standard 6061 aluminum plate, the chassis uses stainless steel, and key components are rigidly connected to ensure the rigidity and stability of the connection parts.
High stability: advanced electrical control system composed of PLC + touch screen + high-definition precision label detection sensor.
Simple adjustment and adjustable design freedom; switching between different products becomes simple and time-saving.
Touch screen operation interface, Chinese and English annotations, and complete fault prompt function; various parameter adjustments are simple and quick, and operation is convenient.
Powerful functions: production meter counting function, power saving function, production quantity setting prompt function, and parameter setting protection function, convenient for production management.
Can be customized according to customer requirements.

Label rewinding speed: 0–60 m/min (adjustable according to actual conditions)
Roll material size: inner hole 76 mm, outer diameter 300 mm
Applicable roll size: width 10 mm–300 mm
Overall machine dimensions: 900 mm × 700 mm × 980 mm (L × W × H)
Applicable power supply: 200V 50/60Hz
Overall machine weight: 150 kg
Total power: 1200W

Note: The configuration may be reasonably adjusted under equivalent configuration according to actual material and delivery conditions, and the configuration can be revised according to customer needs.
