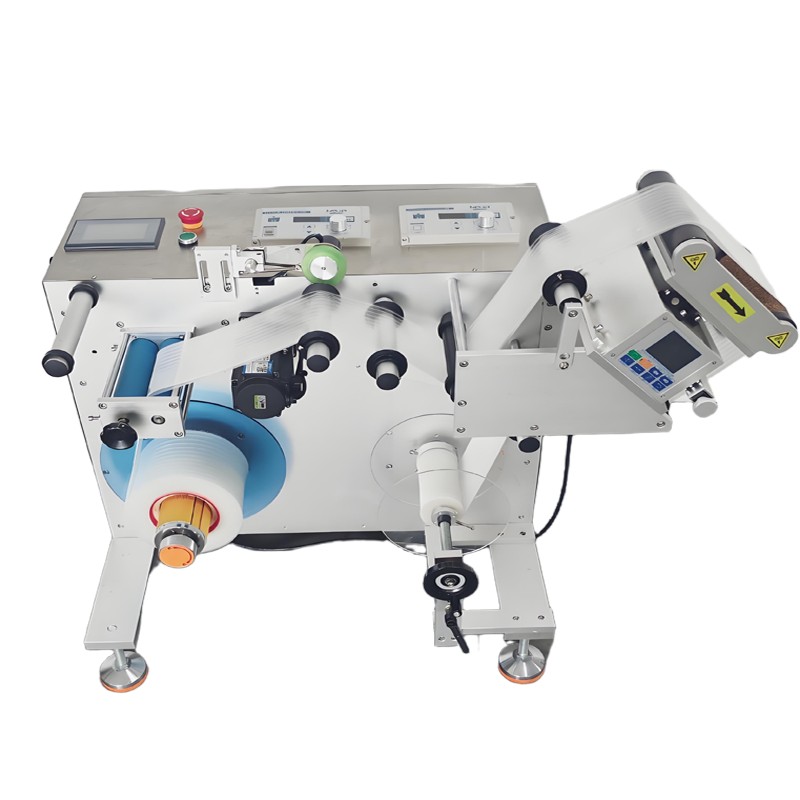

High-speed rewinding machine

Extensive application: High-speed rewinding machine is suitable for rewinding standard tapes with base film widths ranging from 20 to 200 mm.
Durable and strong: the motherboard is made of national standard 6061 aluminum plate, the chassis is made of stainless steel, and the key components should be rigidly connected to ensure the rigidity and stability of the connection parts.
A high-performance electrical control system featuring PLC, touch screen, and HD precision measurement labels with an integrated vision system, ensuring exceptional stability.
Simple adjustment, the design freedom can be adjusted, the conversion between different products is simple and time-saving;
The touch screen interface features bilingual annotations and comprehensive fault diagnosis prompts, with intuitive parameter adjustments for effortless operation.
Powerful, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;
◆ Optional features and components: ① Thermal coding/spray coding; ② Laser marking; ③ Additional functions (customized according to customer requirements).

* Volume label speed: 0 to 30 meters per minute (adjustable as needed)
* Coil size: inner hole 76mm, outer diameter 300mm;
*Applicable label size: width 10mm to 150mm
*Overall dimensions: 700mm×480mm×650mm (length×width×height);
* Applicable power supply: 200V 50/60Hz;
* Weight: 50kg;
*Total power: 450W

Note: The configuration may be adjusted reasonably based on the actual material delivery schedule under the same configuration, and the configuration may be revised according to customer requirements.
