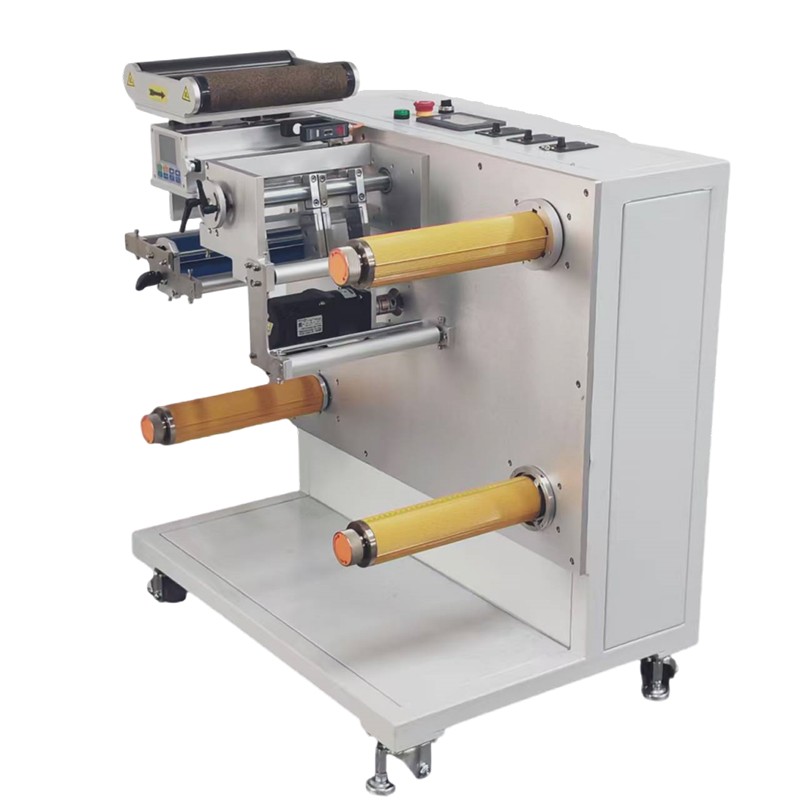

Small Stripper

Extensive application: Small Stripper is suitable for rewinding and slitting of roll materials (standard tapes) with door widths ranging from 10 to 300mm.
Durable and strong: the motherboard is made of national standard 6061 aluminum plate, the chassis is made of stainless steel, and the key components should be rigidly connected to ensure the rigidity and stability of the connection parts.
A high-performance electrical control system featuring PLC, touch screen, and HD precision measurement labels with an integrated vision system, ensuring exceptional stability.
Simple adjustment, the design freedom can be adjusted, the conversion between different products is simple and time-saving;
The touch screen interface features bilingual annotations and comprehensive fault diagnosis prompts, with intuitive parameter adjustments for effortless operation.
Powerful, with production metering function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;
◆ Can be customized according to customer needs.

* Volume label speed: 0 to 60 meters per minute (adjustable as needed)
* Coil size: inner hole 76mm, outer diameter 300mm;
*Applicable coil size: width 10mm~300mm
*Overall dimensions: 900mm×700mm×980mm (length×width×height);
* Applicable power supply: 200V 50/60Hz;
* Total weight: 150KG;
*Total power: 1200W

Note: The configuration may be adjusted reasonably based on the actual material delivery schedule under the same configuration, and the configuration may be revised according to customer requirements.
