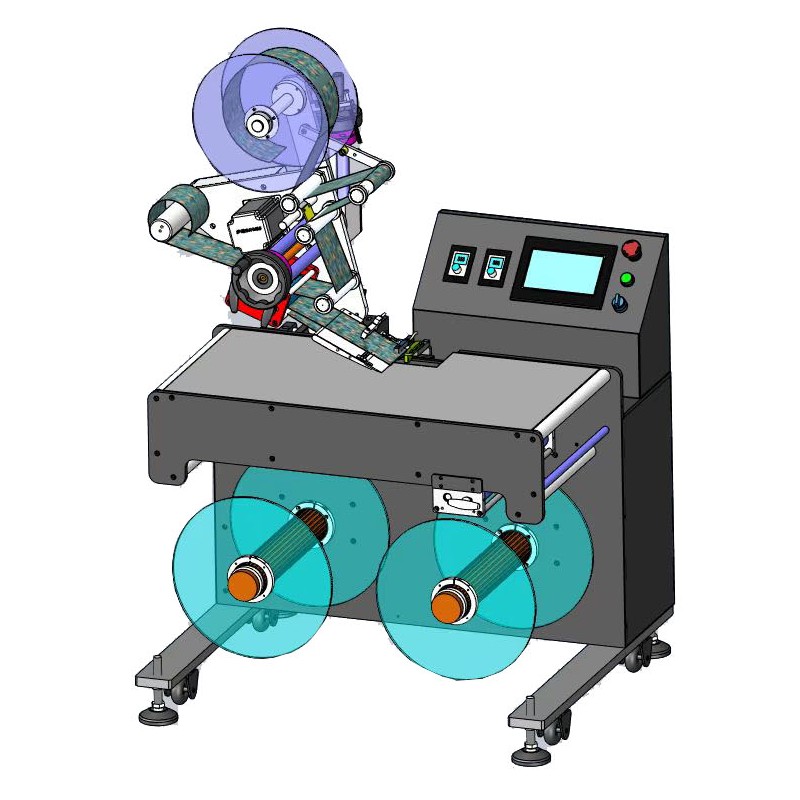

Roll-to-roll label machine

◆ Roll-to-roll label machine is wide application scope, can meet the flat labeling of roll film (standard tape) with the width of the base film 20~320mm, and the replacement of the covering mechanism can meet the labeling of uneven surface;
◆High-precision labeling with servo motor and planetary reducer for accurate tag feeding. The correction system prevents lateral deviation during tag pulling. Eccentric wheel technology in the traction mechanism ensures stable operation and precise tag release.
◆ Strong and durable, using three rod adjustment mechanism, make full use of the stability of the triangle, the whole machine is strong and durable;
◆High stability, featuring a PLC+touchscreen++ advanced control system with a German-made Sick label scanner.
◆ Simple adjustment with adjustable design freedom, making product conversion easy and time-saving; the measuring device's eye adjustment uses a micrometer fine-tuning mechanism for foolproof operation.
◆ Intelligent control and automatic photoelectric tracking, with no label without object, automatic correction and automatic label detection functions, to prevent missing labels and label waste;
◆ Touch screen interface with Chinese and English annotations and comprehensive fault prompt functions. Various parameter adjustments are simple and quick, and the operation is convenient.
◆ Powerful functions, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;
◆ Optional features and components: ① Hot stamping/printing function; ② Add label attaching device; ③ Other functions (custom-made according to customer requirements).

* Volume label speed: 0 to 50 meters per minute (adjustable as needed)
* Coil size: inner hole 76mm, outer diameter 300mm;
*Applicable label size: width 10mm~150mm,
*Overall dimensions: 700mm×480mm×600mm (length×width×height);
* Applicable power supply: 200V 50/60Hz;
* Weight: 50kg;
*Total power: 450W

Note: The configuration may be adjusted reasonably based on the actual material delivery schedule under the same configuration, and the configuration may be revised according to customer requirements.
